V-Box (TB55 Battery Charging Station)

Key Features
DJI comprehensive charging system
Built-in power supply
Built-in cooling fan
Wheels outfitted for easy transportation
Overheating detection via current/voltage/temperature management

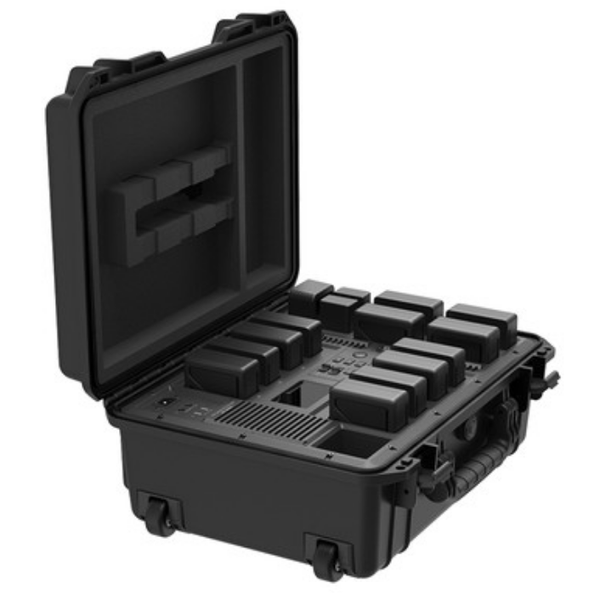

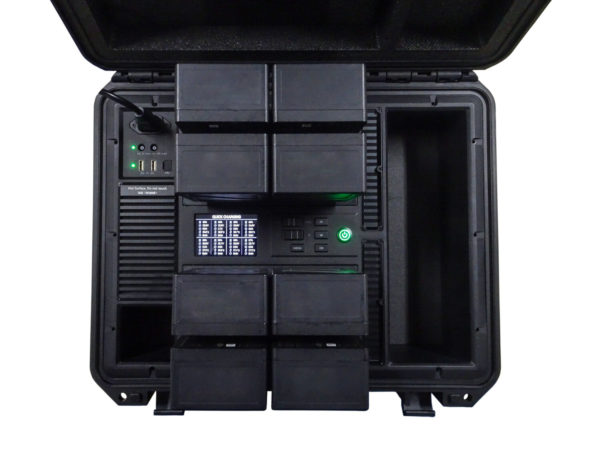

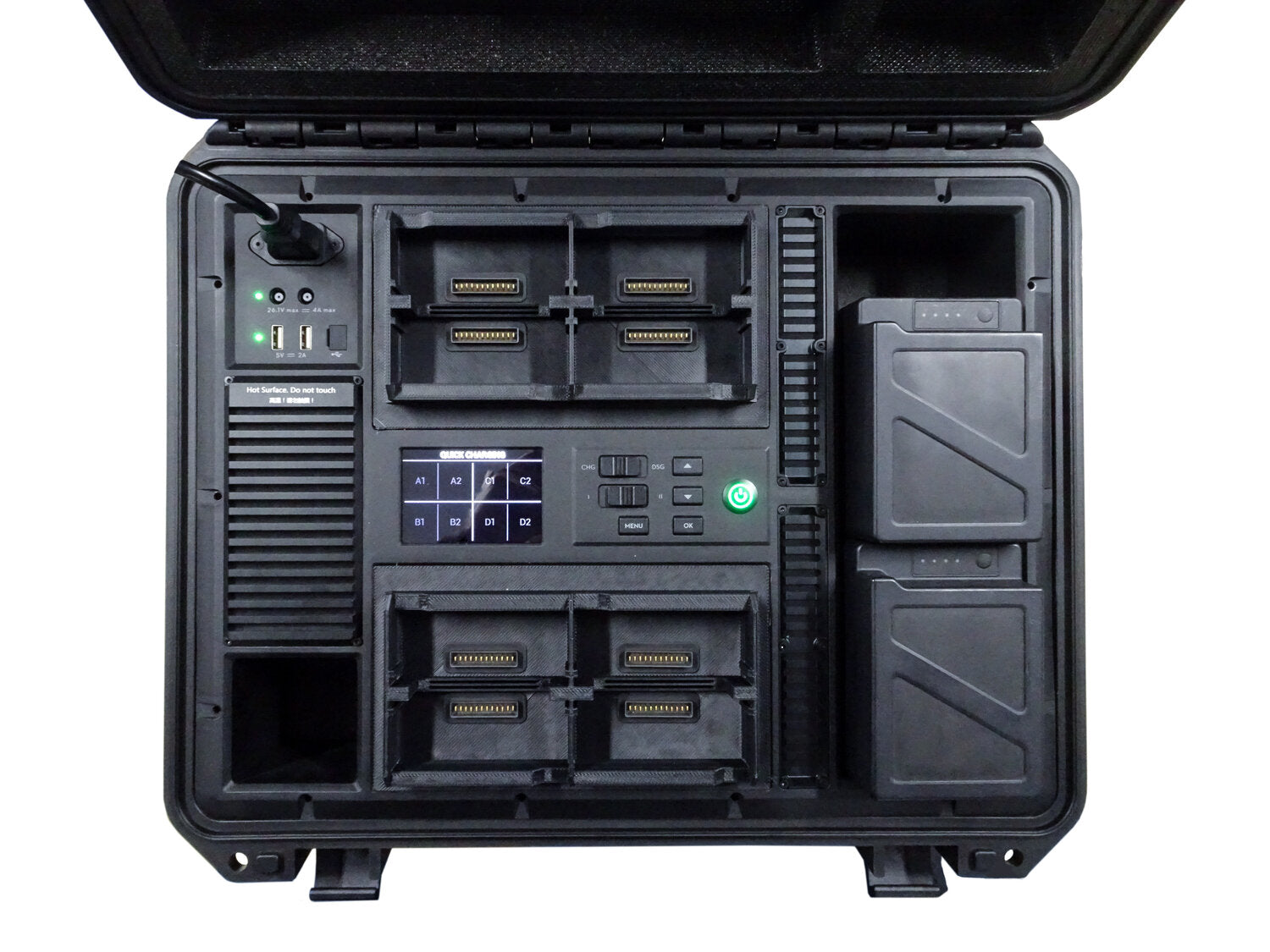

V-Box (the TB55 Battery Charging Station ) Description
DJI’s TB55 Intelligent Flight Batteries are essential to all Enterprise dealers and Matrice 200 users, especially with the upcoming M210 V2. V-Box, the TB55 Battery Charging Station developed by Volarious, also known as the 8x batteries charger solved the problem of not having enough DJI battery station chargers to go around for the TB55 batteries. This DJI TB55 Charging Station makes full use of all the charging ports found in the DJI Battery Station. With this extension, 8 TB55 batteries can be charged and discharged simultaneously. V-Box, TB55 station, reduces the TB55 batteries charge time. It can quickly charge TB55/TB50 batteries to 90% in 40 minutes . V-Box still keeps the original DJI Battery Station feature that can charge TB50 batteries for your DJI Inspire 2 Series.
This battery station charger has a lead time of 4 weeks.

Multiple Charging Modes
Normal Mode - Charge up to 8 TB50 or TB55 batteries simultaneously until fully charged.
Quick Mode - Four batteries will charge to 90% first, then 100% for any batteries that are still inserted.
Silent Mode - The Battery Station will restrict the charging current, lower the speed of the cooling fan, and turn off the beeper to reduce operating noise. This mode is recommended in quiet environments with abundant time for charging. Silent mode can be enabled in the menu under Normal mode.

Discharging Mode - In order to protect your batteries, this mode brings battery level down to 25% for transportation or 50% for storage.

Battery Compatibility and Charge Times
DJI Inspire 2 TB50
DJI Matrice 200/210 TB55

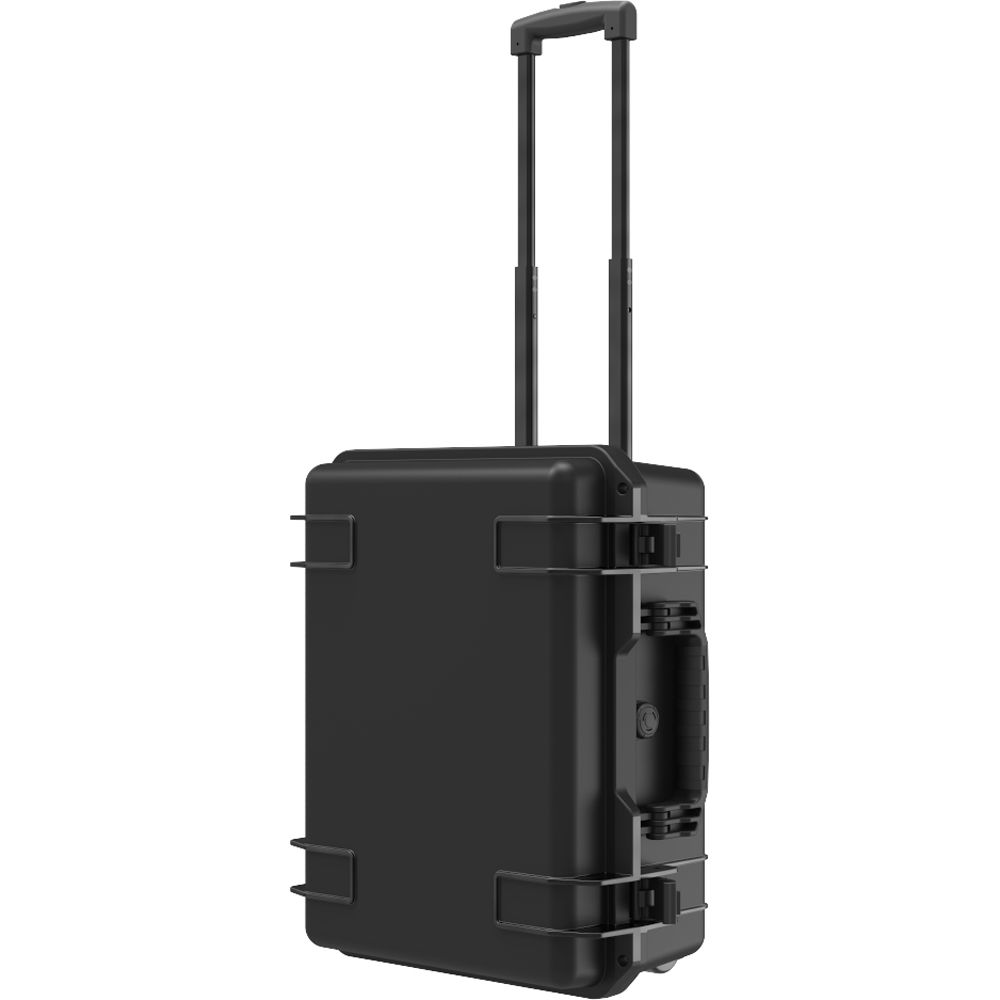

IP67 Rated Protective Hard Case
Waterproof
Dustproof
Impact resistant
USA UL94 V-0 flammability standards

Warranty
A 12 months industry-leading warranty from the day of receiving.

Specification

Dimensions
48.4 cm x 22.65 cm x 22cm

Net Weight
7.7 kg

Max Internal Load
12 kg

Compatible Stored Items
TB50 Intelligent Battery x 8/12
TB55 Intelligent Battery x 4/0
WB37-4920mAh-7.6V Intelligent Battery x 2
WCH2 Charging Hub x 1
AC Power Cable x 1

Input
100-240 V, 50-60 Hz

Output
Battery Port: 26.1 V max., 6.75 A max. x 8
Remote Controller Port: 26.1 V max., 4 A max. x 2
USB Port: 5 V, 2 Ax 2

Operating Temperature
41° to 104° F (5° to 40° C)

Estimated Charging Time*
TB55 and T50 Intelligent Battery:
130 minutes (Normal mode) for 8 batteries from 25% to 100%
90 minutes (Normal mode) for 8 batteries from 25% to 90%
40 minutes (Quick mode) for 4 batteries from 25% to 90%
5 hours (Silent mode) for 8 batteries from 25% to 100%

Remote Controller:
2 hrs 24 minutes (GL6D1 OA); 3 hrs (GL800A)
