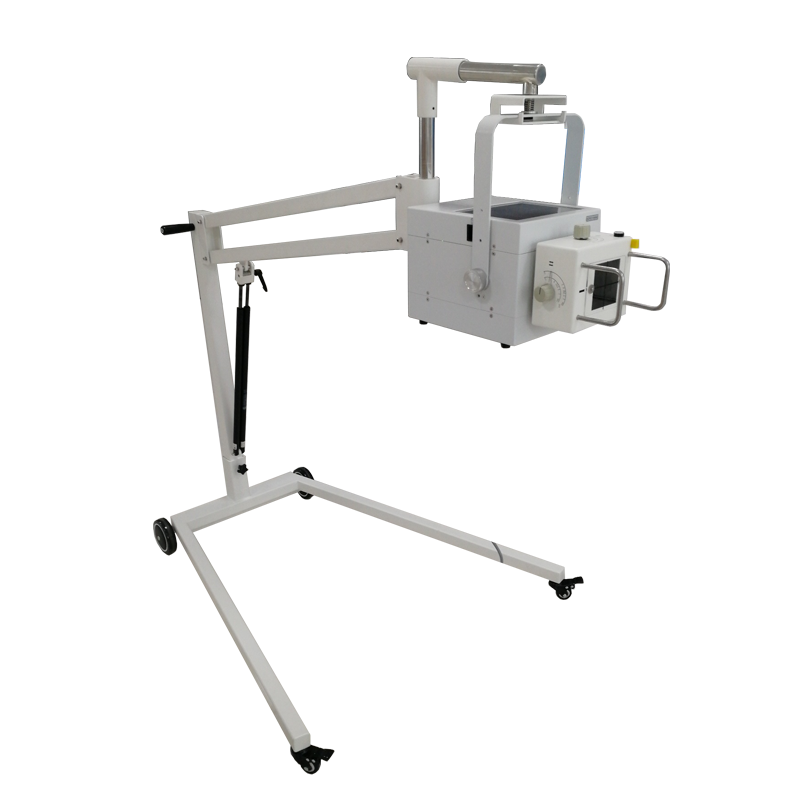

Portable medical diagnostic X-ray equipment
The portable medical diagnostic X-ray equipment adopts the integrated design of X-ray tube, high voltage generator and collimator, which can ensure the minimum failure rate.
Application scene
➣ Emergency
➣ Indoor shooting
➣ outdoor shooting
➣ Oversea voyage
● Gapless Fuel Tank Design
● All-in-One Integrated Design
● Simple system operation
● High frequency rectification technology
● The machine is lighter
● Support DR, CR and film system
● Lower radiation dose
| Item | Parameters |
| Output Power | 5.3kW |
| Rated Voltage | 220VAC,±10%,50/60Hz |
| Inverter Frequency | 100kHz,+/- 5% |
| kV Range | 40kV-125kV |
| mA Range | 10-100mA |
| ms Range | 1 -4000ms |
| mAs Range | 0.1-200mAs |
| Focus size | 0.6-1.8 |
| Volume | 450*255*220 |
| Package Size | 540*365*325 |
| Net Weight | 15 kg |
| Gross Weight | 22kg |
