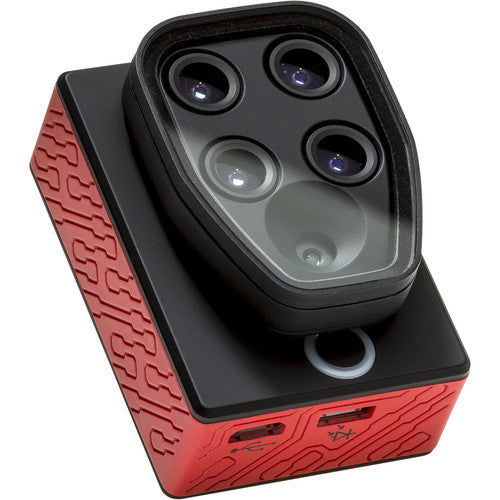

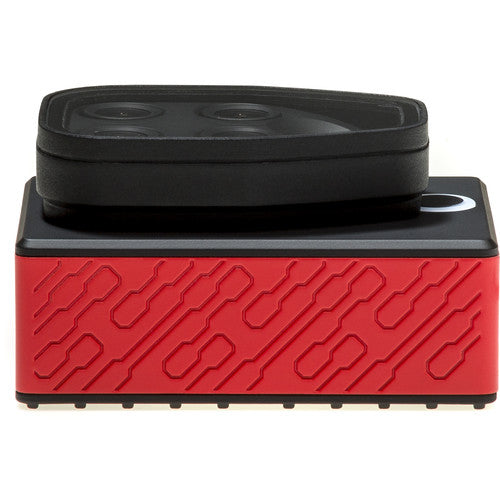

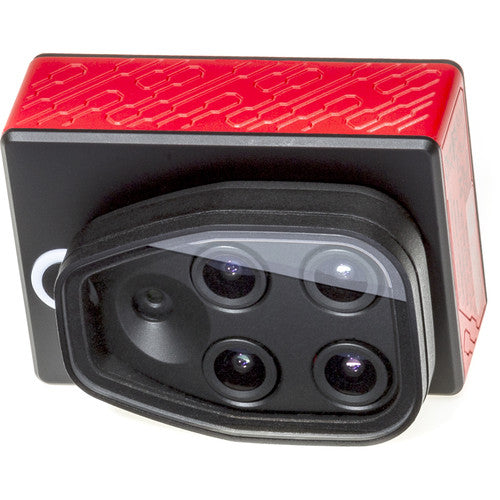

When oriented towards your crops, the multispectral sensor is designed to capture the light that's reflected in four different bands: green, red, and two infrared bands that are invisible to the naked eye. When oriented towards the sun, the sunshine sensor can record the light intensity in the same four bands.

When coupled with (optional) Pix4D software and its radiometric processing pipeline, you can get consistent data evaluation without any need for a radiometric calibration target. The Sequoia+ is also compatible with software from AIRINOV Technology, MicaSense ATLAS, and SenseFly.

• Capture the invisible, monitor your crops
• Optimize your agricultural yield and control production costs better
• Identifies the needs of your plants
• Provides information so you can take action at the micro-plot level

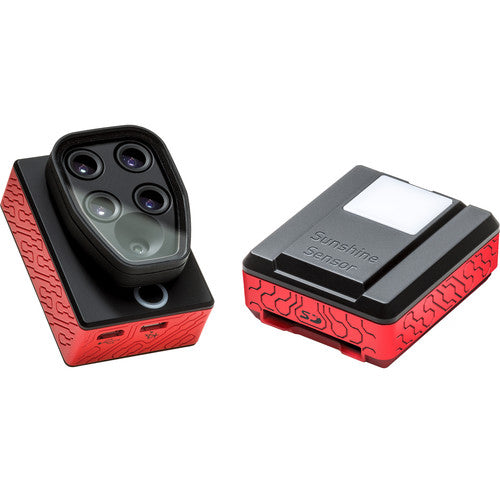

• Sequoia solution features two sensors: multispectral and sunshine
• The multispectral sensor captures light plants reflect in four separate parts: red and green lights and two infrared bands invisible to the human eye
• Sunshine sensor records the intensity of light from the sun
• The multispectral sensor incorporates GPS to increase the accuracy of data collected
• Made for all drones, both multi-rotor and flying wing
• WiFi and USB make data accessible on computer, smartphone or tablet
• Customizable and complete solution, easy to use and integrate

RGB Camera

Resolution: 16 Mpx, 4608×3456 pixels
HFOV: 63.9°
VFOV: 50.1°
DFOV: 73.5°

4 Global Shutter Single-Band Cameras

Resolution: 1.2 Mpx, 1280×960 pixels
HFOV: 70.6°
VFOV: 52.6°
DFOV: 89.6°

4 Separate Bands

Green (550nm BP 40nm)
Red (660nm BP 40nm)
Red Edge (735nm BP 10nm)
Near-infrared (790nm BP 40nm)

General

Dimensions: 59x41x 28mm (2.3×1.6×1.1in)
Weight: 72 g (2.5 oz)
Photo mode: Up to 1 fps
Internal storage: 64 GB built-in storage
Power: 5 W (~12 W peak)

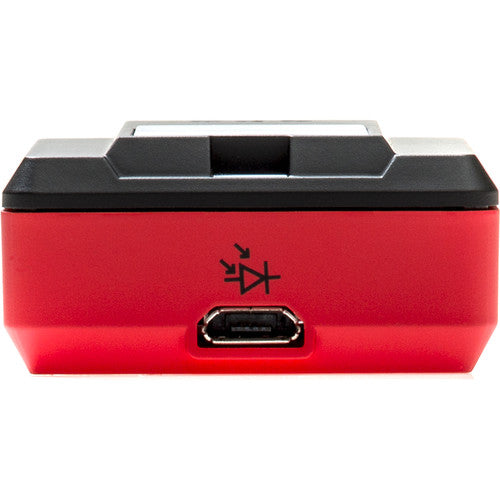

Sunshine Sensor

Dimensions: 47×39.6×18.5mm (1.8×1.5×0.7in)
Weight: 35 g (1.2 oz)
Power: 1 W
