HUAWEI 100KVA 3PHASE GRID-TIED SOLAR INVERTER M1

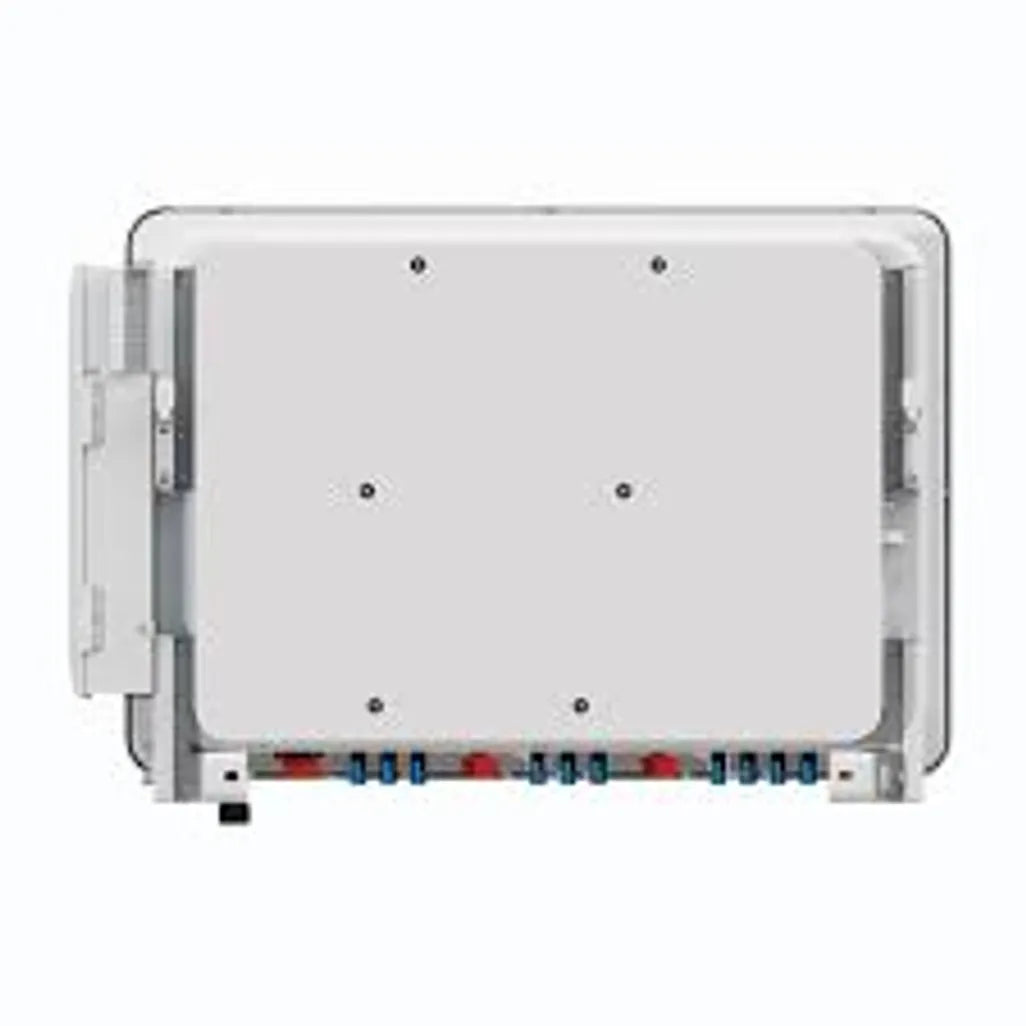

Huawei M1 100kVA 100kW 3-Phase Solar Inverter

HUAWEI SUN2000-100KTL-M2 inverter is an uncompromisingly powerful module for large-scale solar power systems. It converts the generated electricity from sunlight into grid-standard alternating current. This is available on site or for feeding into the grid. The dimensions of 1035 x 700 x 365 mm are compact for an inverter of this power class, the weight is 93 kg.

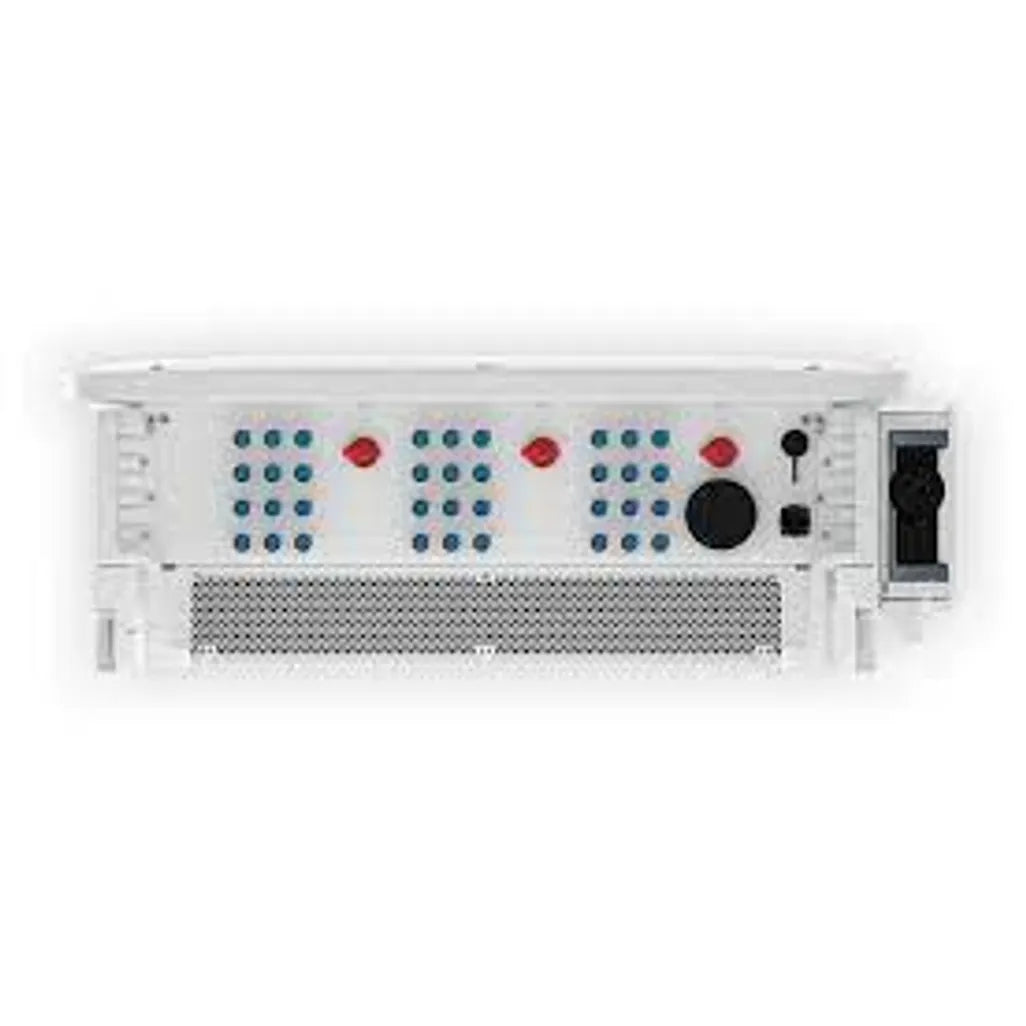

 Installation is therefore best done in pairs or threes. DC connection to the PV system is via plug-in connections, so commissioning is completed quickly.

The Huawei FusionSolar app helps with the setup. The HUAWEI SUN2000-100KTL-M2 inverter also connects effortlessly with smart components. It supports RS485 communication, for example, with the smart logger. The data can be viewed via the FusionSolar management system.

In summary, the HUAWEI SUN2000-100KTL-M2 inverter offers numerous advantages, including the module already has overvoltage protection (type 2 for DC and AC). In addition, ten independent MPP trackers are installed at the factory. Another pleasant feature is the low noise level thanks to modern Smart Air Cooling.

The power of 115,000 watts meets the needs of a large system, the MPPT voltage range is between 200 and 1000 volts. The maximum efficiency reaches an amazing 98.8%, the European efficiency 98.6%. All this ensures a high yield in operation.

Specifications:

• Performance: 120000
• Phase: 3
• String: 20
• MPPT: 10
• Power Ac Out: 100000 Watt
• Power Dc In: 120000 Watt
• Weight: 93 kg
