F1 Subwoofer

F1 Subwoofer

R 0.00 ZAR
R 0.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

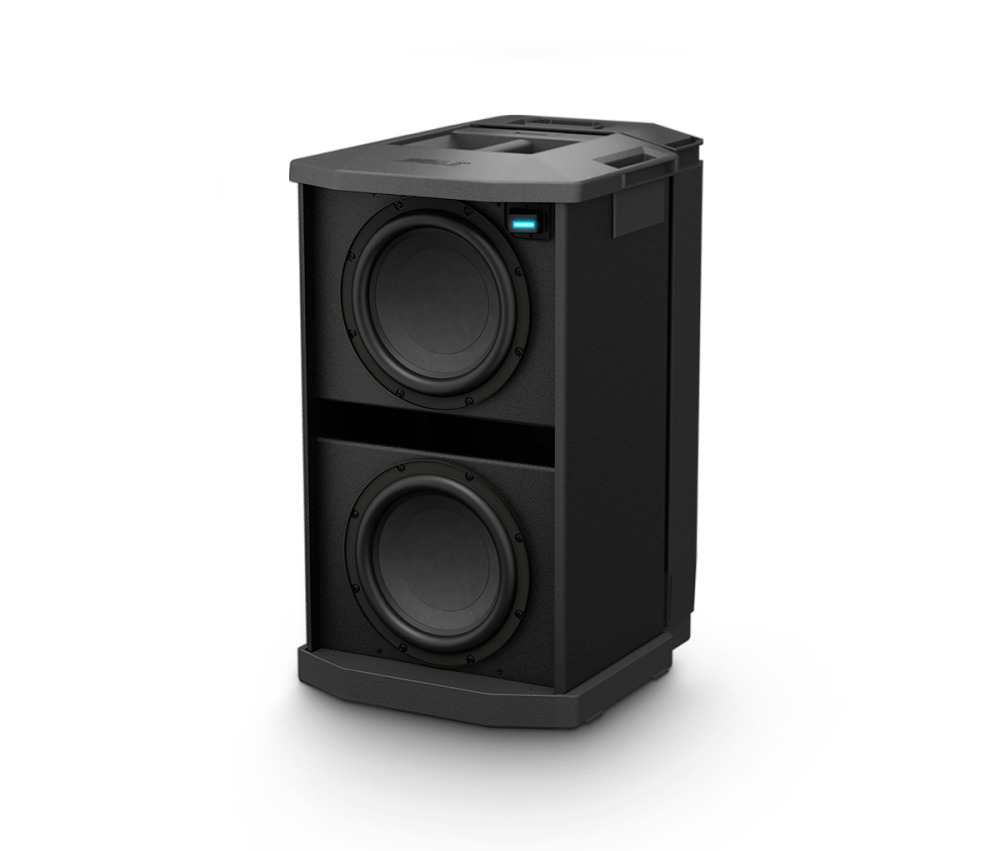

With 1,000 watts of power, the Bose® F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the Bose F1 Model 812 Flexible Array Loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.



Features

  •

    Two high-excursion drivers, each measuring 10 inches, are built into a compact enclosure that is light and easy to transport



  •

    Polarity switch to adjust polarity of subwoofer. Selections are NORM and REV. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwoofer



  •

    Line output EQ sets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker



  •

    F1 Model 812 extension bracket is a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand



Applications

Designed for a wide range of applications, including:

  • Live music performances

  • Bands of all styles

  • Solo musicians

  • Mobile DJs

  • Houses of worship

  • Schools and universities

  • Resorts and hospitality venues

  • Business presentations

SPecs

Technical Specification

AMPLIFICATION

  • Number of Channels

  • 1

  • Power Class

  • Class D

  • THD+N

  • 0.1% maximum (30 Hz – 15 kHz)

AUDIO INPUTS, ANALOG

  • Channels

  • 2

  • Connectors

  • (2) XLR-1/4-in combo

PERFORMANCE

  • Frequency Range (-10 dB)

  • 38 Hz – 250 Hz

  • Coverage, Horizontal

  • Omnidirectional

  • Maximum SPL at 1 m

  • 130 dB

  • Power Handling, Peak

  • 1000 W

  • Coverage, Vertical

  • Omnidirectional

TRANSDUCERS

  • Crossover Frequency

  • 40 Hz – 100 Hz, Butterworth bandpass / 100 Hz, 4th-order Butterworth high-pass filter at line out

  • Driver Protection

  • Dynamic limiter

  • Low-Frequency Transducer Quantity and Size

  • 2 × 10 in (254 mm) high-excursion drivers



View full details
